ONOSI Intelligent Temperature Control Technology
20+ Years Experience
ONOSI Solar combines the patented five-dimensional heat transfer technology, uses self-developed working fluids and innovative technology, uses aerospace rare earth aluminum alloy materials as structural parts, and breakthroughs in the development of a new temperature-controlled heat pipe solar collector with super copper water heat pipes. The large-scale promotion of metal heat pipe vacuum tube solar collectors provides a revolutionary solution.
The most new innovation from ONOSI Solar is at the heart of the Heat pipe, we call it the Thermo Controlled Heat pipe. As the name suggests, a thermal temperature protection is integrated here. Unlike other mechanical protections, our protection is in the fluid that moves (flows) in the Heat pipe.

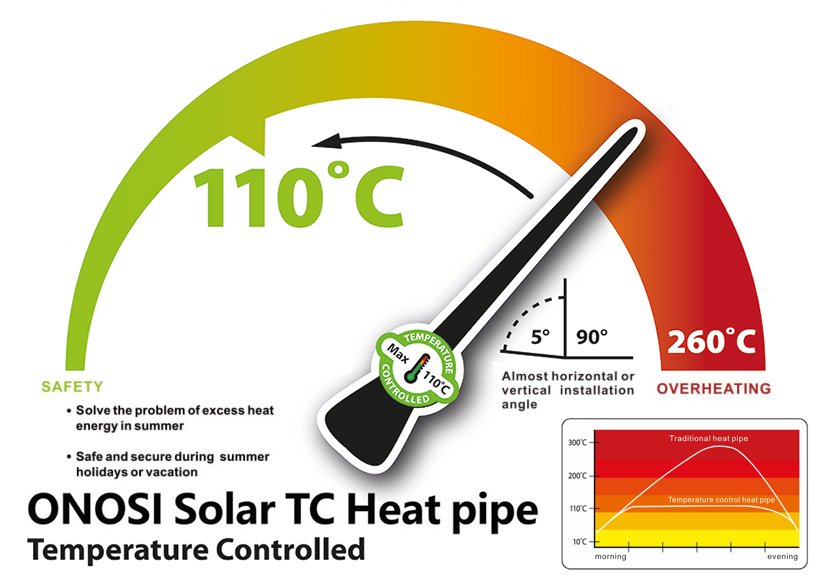

While the temperature in the traditional Heatpipe can easily rise to 250°C, the renewed Thermo Controlled Heatpipe stops at 110°C. As soon as this temperature is reached, the inside of the Heatpipe boils dry, so that the operation stops. In short, no protection in mechanical parts, but thermal in the core of the Heat pipe.
Advantages of Thermo Controlled Heat Pipe
01
The ONOSI temperature-controlled solar heat pipe adopts a different heat transfer mode from the traditional copper-water heat pipe. The steam flow rate is only 20cm / s at a working temperature of 50°C. The steam flow rate is not high, which will not cause a carrying limit. Therefore, the heat transfer capacity of a single heat pipe is not limited, which can meet the large heat transfer requirements of CPC solar collectors.
02
ONOSI temperature control solar heat pipe adopts aerospace rare earth aluminum alloy material, resistant to high temperature and pressure, without carbonization and perforation,-80°C antifreeze.The internal pressure of heat pipe is positive pressure (that is, higher than atmospheric pressure), there is no life problem caused by reduced vacuum, the effective life of the product is greater than 15 years, which can ensure that the solar collector has a consistently high life cycle Heat transfer capacity.
03
The ONOSI temperature control solar heat pipe has an intelligent temperature control function. The product intelligently senses the temperature change. The system stops immediately when the heat is excessive or gradually stops the heat transfer 110°C, and restores the performance immediately when the heat is not excessive. It fully meets the ideal temperature control requirements and realizes Precise temperature control; at the same time, the function of blocking at high temperature does not affect the heat transfer performance under normal working conditions. The maximum temperature of hot water in the solar system water tank can be controlled at 85°C.
04
Because there will be no overheating, there is no stagnation in the system. No continuously rising temperatures brings peace and relaxation at home and on vacation.
05
The ONOSI temperature control heat pipe solar collector has no restrictions on the installation angle. The heat pipe angle is between 5°-85° and can be conducted without barriers. The solar collector can be installed in various ways such as vertical and horizontal， will result in a sleeker appearance on the home or garage.
ONOSI solar heat pipe intelligent temperature control method:
01
Stop immediately at the set working temperature 110℃ or gradually stop heat transfer.
02
Intelligently sense the temperature change, and adaptively stop the phase change at high temperature.
03
Stop heat transfer immediately after reaching the set temperature point 110℃, and resume heat transfer immediately below the set temperature point, with absolute consistency.
Stop heat transfer when there is excess heat, below the set temperature point immediately resume heat transfer, fully in line with ideal temperature control requirements.
The function of blocking at high temperature does not affect the heat transfer performance under normal working conditions.
ONOSI temperature control CPC heat pipe solar collector, intelligent temperature control, -80°C antifreeze, long life and other characteristics to meet the application of solar collector projects in different scenarios. Solve the problems of high temperature reliability such as carbonization of thermal fluid caused by excess heat, loss of heat transfer capacity, excessive temperature of water tank and pressure relief.
-
Reject sunshade panel
-
Reject pipe radiators
-
Reject carbonization, bursting and freezing of heat pipes
-
Reject water tanks reaching boiling point
